When stepping into a science lab for the first time, one of the most recognizable pieces of equipment you might encounter is a conical glass container with a narrow neck and wide base. That, right there, is the Erlenmeyer flask, a staple in chemistry, biology, and general science labs around the world. But what exactly is it, where did it come from, and why is it such an essential tool in laboratory settings?
This article will dive deep into the Erlenmeyer flask, exploring its structure, history, common uses, and some of the reasons why it’s favored over other lab glassware.
The Origins: A Bit of History
The Erlenmeyer flask was invented in 1860 by the German chemist Emil Erlenmeyer, who designed it to allow for easier mixing of chemical solutions without the risk of spilling. His innovation—combining a flat bottom, a conical body, and a cylindrical neck—revolutionized laboratory experiments by offering a safer, more practical vessel for heating, mixing, and storing substances.
Emil Erlenmeyer was also known for his contributions to organic chemistry, but his invention of the flask that now bears his name remains one of his most enduring legacies.
Physical Characteristics of an Erlenmeyer Flask
The design of the Erlenmeyer flask is both simple and functional. Its most notable features include:
- Conical Shape: The sloping sides reduce the risk of spills during stirring or swirling.
- Narrow Neck: This helps to contain vapors and reduce evaporation, while also allowing the flask to be stoppered easily.
- Flat Bottom: Provides stability and allows the flask to sit on a lab bench or hot plate without tipping over.
- Graduation Marks (optional): Some Erlenmeyer flasks come with volume markings, though they are not intended for precise measurement.
These features make the Erlenmeyer flask more suitable than a beaker or test tube in certain situations, particularly when it comes to mixing and heating.
Materials Used to Make Erlenmeyer Flasks
Most Erlenmeyer flasks are made from borosilicate glass, such as Pyrex, which is resistant to thermal shock and chemical corrosion. This makes them ideal for heating or holding reactive substances.
However, flasks can also be found in other materials, depending on their use:
- Plastic (usually polypropylene or polycarbonate): Useful for lightweight, less hazardous applications, particularly in fieldwork or classrooms.
- Amber Glass: For storing light-sensitive chemicals.
- Heavy-duty Glass: For high-pressure or vacuum environments.
Each type has its advantages, but the classic clear glass Erlenmeyer flask remains the most widely used in educational and research laboratories.

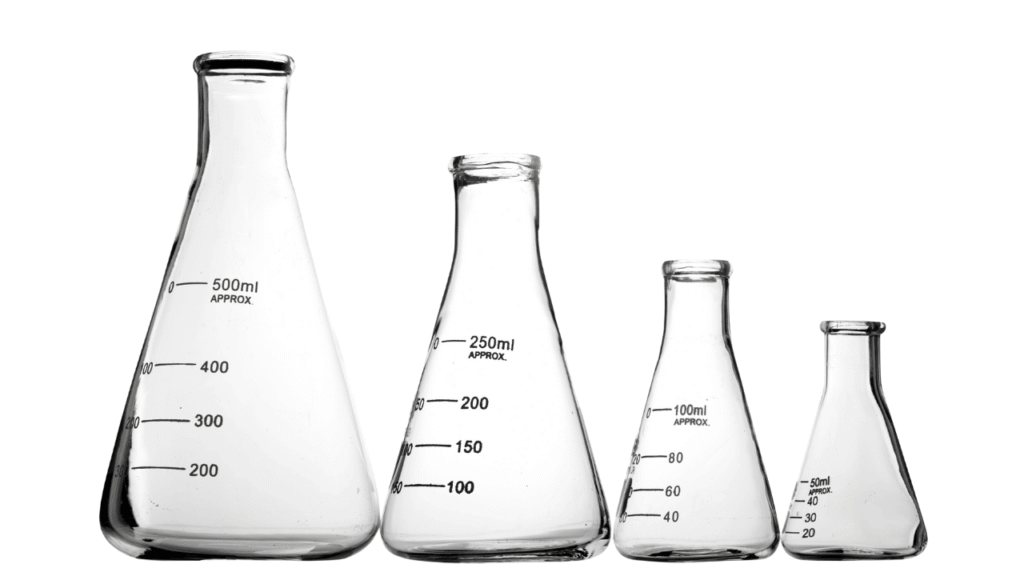

Common Sizes of Erlenmeyer Flasks
Erlenmeyer flasks come in a range of sizes, typically measured in milliliters (mL):
- 50 mL
- 100 mL
- 250 mL
- 500 mL
- 1000 mL (1 liter)
- 2000 mL and beyond for industrial or advanced laboratory use
The choice of size depends on the volume of liquid being handled and the purpose of the experiment.
Main Uses of the Erlenmeyer Flask
1. Mixing Solutions
The conical shape allows for vigorous mixing of liquids without splashing. A student can swirl an Erlenmeyer flask with one hand, often without a stopper, and the liquid will stay inside thanks to the sloping walls.
2. Heating Substances
Because of its borosilicate glass construction, the flask can be heated over a Bunsen burner or placed on a hot plate. The wide base allows for more even heat distribution than a test tube.
3. Titration
Although a burette is used to deliver the titrant, the receiving solution is typically held in an Erlenmeyer flask. Its shape makes it easier to swirl the solution and prevent splashing as reagents are added.
4. Culturing Microorganisms
In microbiology labs, Erlenmeyer flasks are often used to grow bacteria, yeast, or fungi. When covered with cotton or a breathable stopper, they allow for gas exchange while preventing contamination.
5. Temporary Storage
Chemicals and solutions can be safely stored in Erlenmeyer flasks for short periods, especially when sealed with a rubber stopper, glass stopper, or parafilm.
6. Filtration
Erlenmeyer flasks can be used in vacuum filtration when connected to a Buchner funnel. The narrow neck fits tightly with the funnel, while the strong glass resists the pressure change.
Why Use an Erlenmeyer Flask Instead of Other Glassware?
There are many types of laboratory glassware—beakers, test tubes, volumetric flasks, graduated cylinders, and more. So, why choose an Erlenmeyer flask?
Here are some reasons:
- Less Risk of Spills: Its sloping sides make swirling safer than with a beaker.
- Versatile: Can be used for heating, storing, mixing, or culturing.
- Compatible with Stoppers: Makes it easy to seal the container.
- More Stable than Test Tubes: The flat bottom prevents tipping.
- Easier to Label: Wide surface area allows space for writing.
In many classroom or lab scenarios, the Erlenmeyer flask offers a practical blend of convenience and safety.
Safety Tips When Using an Erlenmeyer Flask
Even though it’s a common tool, using an Erlenmeyer flask safely is crucial:
- Never heat a closed flask: Pressure can build up and cause an explosion.
- Check for cracks: Damaged glassware should not be used as it can break under stress.
- Use tongs or gloves when hot: Glass looks the same hot or cold—always be cautious.
- Label contents clearly: Prevent accidental misuse or mixing of chemicals.
- Dispose of chemicals properly: Don’t leave contents in the flask after experiments.
Real-World Applications
Though Erlenmeyer flasks are most commonly seen in school labs, they also play a vital role in professional research and industry:
- Pharmaceuticals: Used in drug synthesis and testing.
- Environmental Science: Helps in testing water quality or analyzing pollutants.
- Food Science: Used in fermentation and testing of food additives.
- Forensics: Assists in chemical analysis of evidence.
- Biotech Companies: Used in DNA research, protein development, and vaccine creation.
Conclusion
The Erlenmeyer flask might seem like just another piece of glassware, but its simple yet brilliant design has earned it a central place in scientific exploration. For students, it represents not just a tool for mixing or heating but a symbol of the exciting, hands-on world of science.
Understanding its structure, uses, and advantages helps develop safe lab habits and a deeper appreciation for the design of scientific tools. So, the next time you pick up an Erlenmeyer flask in class, remember: you’re holding a piece of chemistry history—and one of the most versatile items in the lab.
