Volumetric Pipette: Definition, Function, Working Principle, Types and Sizes

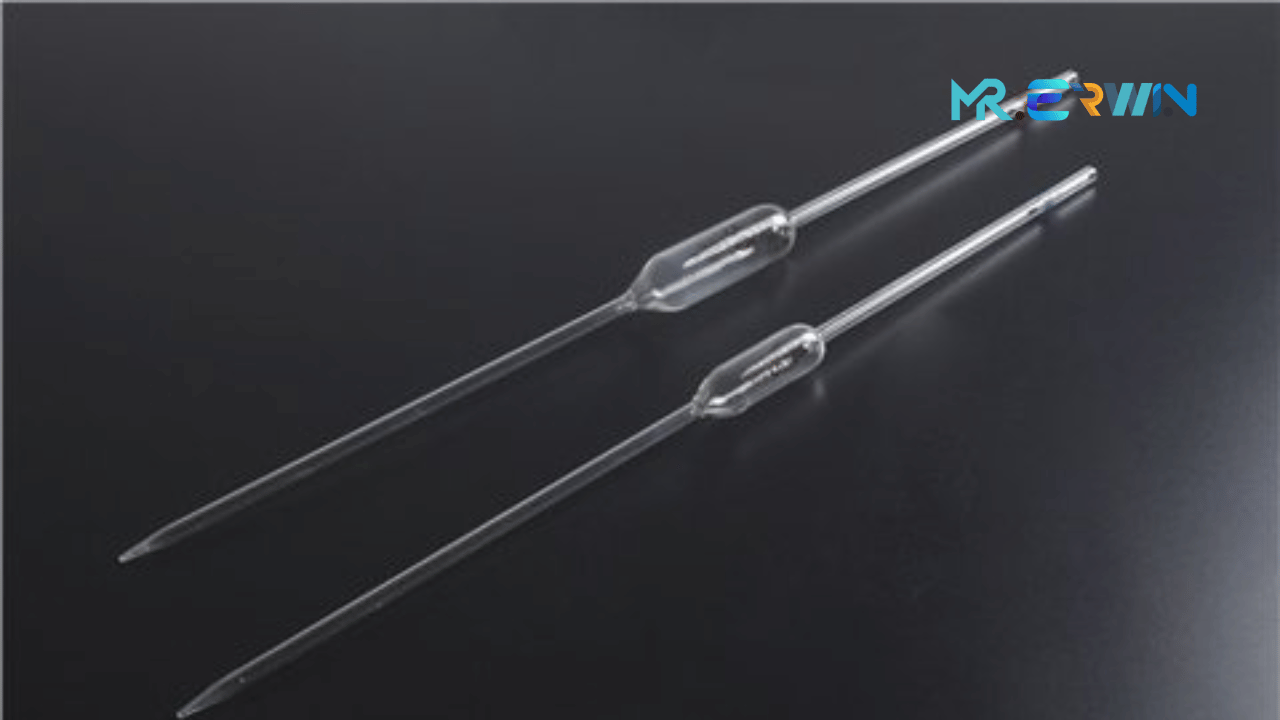

The volumetric pipette, also known as a bulb pipette or transfer pipette, is one of the most essential and precise measuring instruments in analytical chemistry and laboratory work. This specialized glassware is designed to deliver a fixed volume of liquid with exceptional accuracy and precision, making it indispensable for quantitative analysis, solution preparation, and various laboratory procedures where exact measurements are critical.
The distinctive bulbous shape that gives the volumetric pipette its characteristic appearance is not merely aesthetic but serves a crucial functional purpose in achieving the high level of precision required in analytical work. Understanding the proper use, maintenance, and limitations of volumetric pipettes is fundamental for anyone working in chemistry, biology, medical diagnostics, or any field requiring accurate liquid measurements.
Definition and Basic Structure
A volumetric pipette is a precision glassware instrument designed to measure and transfer a specific, fixed volume of liquid with high accuracy, typically within ±0.1% of the stated volume. Unlike graduated pipettes that can measure various volumes, volumetric pipettes are calibrated to deliver only one specific volume, which is clearly marked on the bulb or neck of the pipette.
Key Structural Components:
Upper Delivery Tip: A narrow opening at the top through which liquid is drawn into the pipette. This tip is designed to provide controlled suction and dispensing.
Neck/Stem: The narrow upper portion that connects the delivery tip to the bulb. This section often contains the volume marking and calibration information.
Bulb: The enlarged central chamber that holds the majority of the liquid volume. The spherical or bulbous shape maximizes volume while minimizing surface area, reducing measurement errors due to meniscus formation and surface tension effects.
Lower Delivery Tip: The narrow outlet at the bottom through which the liquid is dispensed. The internal diameter and length of this tip are precisely controlled to ensure consistent delivery rates and complete drainage.
Graduation Mark: A single etched line that indicates the exact fill level for the specified volume. This mark is typically located on the neck above the bulb.
Primary Functions and Applications
1. Quantitative Analysis
Volumetric pipettes serve as the backbone of quantitative analytical procedures, including:
- Titration preparations: Accurately measuring analyte solutions and standard solutions
- Serial dilutions: Creating precise concentration series for calibration curves
- Aliquot sampling: Taking representative portions of samples for analysis
- Buffer preparation: Measuring exact volumes of stock solutions for pH control
2. Solution Preparation
In analytical chemistry, volumetric pipettes are essential for:
- Standard solution preparation: Measuring precise volumes of primary standards
- Working solution dilutions: Preparing analytical working solutions from stock concentrations
- Quality control solutions: Preparing reference materials with known concentrations
- Calibration standards: Creating accurate reference points for instrumental analysis
3. Biological and Medical Applications
The precision of volumetric pipettes makes them valuable in:
- Clinical diagnostics: Measuring patient samples and reagents
- Biochemical assays: Preparing enzyme solutions and substrate mixtures
- Cell culture work: Adding precise volumes of media and supplements
- Pharmaceutical analysis: Measuring drug solutions and excipients
4. Environmental and Food Analysis
Applications include:
- Water quality testing: Measuring samples for pollutant analysis
- Food safety testing: Preparing samples for contaminant analysis
- Pesticide residue analysis: Measuring extraction solvents and samples
- Nutritional analysis: Preparing samples for vitamin and mineral content determination
Working Principle and Mechanism
The volumetric pipette operates on fundamental principles of fluid mechanics, surface tension, and atmospheric pressure. Understanding these principles is crucial for proper technique and accurate results.
Filling Mechanism
1. Suction Phase: When suction is applied to the upper delivery tip (either by mouth pipetting with appropriate safety devices or using a pipette filler), atmospheric pressure pushes liquid up into the pipette through the lower delivery tip. The liquid rises until it reaches the graduation mark on the neck.
2. Meniscus Reading: The liquid surface forms a curved interface (meniscus) due to surface tension effects. For aqueous solutions, the meniscus is typically concave, and readings should be taken at eye level with the bottom of the meniscus aligned with the graduation mark.
3. Volume Definition: The pipette is calibrated so that when filled to the graduation mark, it contains exactly the specified volume plus a small additional amount in the delivery tip.
Delivery Mechanism
1. Drainage Phase: When the upper opening is exposed to atmospheric pressure, gravity and atmospheric pressure work together to force the liquid out through the lower delivery tip.
2. Flow Rate Control: The internal diameter of the delivery tip is designed to provide an optimal flow rate—fast enough for efficiency but slow enough for control and accuracy.
3. Complete Delivery: The pipette is designed so that when held vertically and allowed to drain freely, a specific small volume remains in the delivery tip. This “blow-out” volume is accounted for in the calibration.
Precision Factors
Several factors contribute to the high precision of volumetric pipettes:
Temperature Compensation: Most volumetric pipettes are calibrated at 20°C, and temperature effects on both the glass and the liquid must be considered for maximum accuracy.
Surface Tension Effects: The design minimizes variations due to surface tension by providing a consistent meniscus shape and position.
Gravitational Consistency: The drainage is gravity-assisted, providing consistent delivery characteristics regardless of operator technique variations.

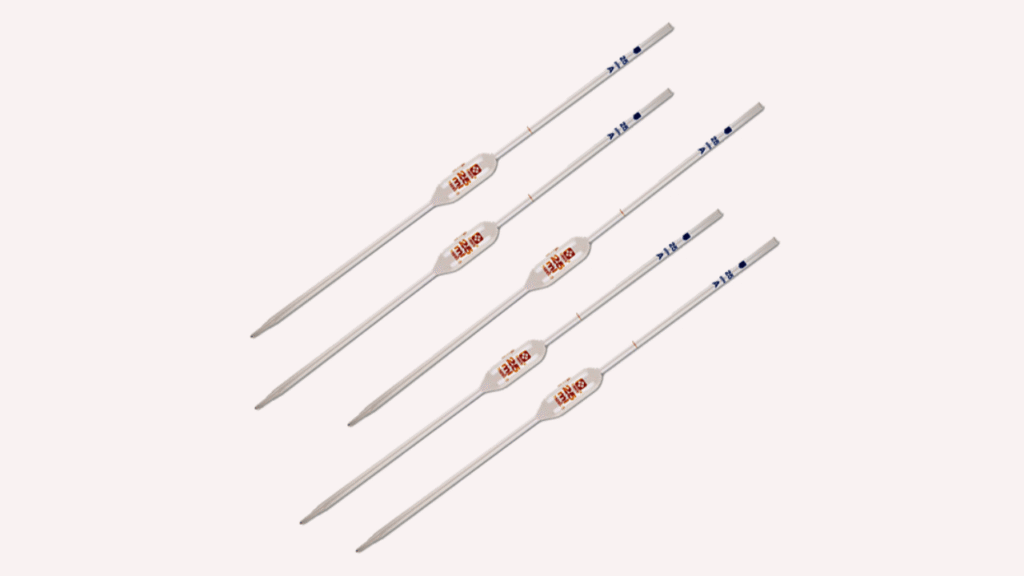

Types and Classifications
Classification by Volume Range
1. Macro Volumetric Pipettes (1-100 mL)
- Large Volume Range: 50-100 mL
- Applications: Preparing large volumes of standard solutions, bulk sample preparation
- Accuracy: Typically ±0.05-0.1 mL
- Common uses: Environmental sample preparation, industrial quality control
- Medium Volume Range: 10-50 mL
- Applications: General analytical work, routine solution preparation
- Accuracy: Typically ±0.02-0.05 mL
- Common uses: Titration preparations, buffer solutions, general lab work
- Small Volume Range: 1-10 mL
- Applications: Precise analytical measurements, pharmaceutical analysis
- Accuracy: Typically ±0.006-0.02 mL
- Common uses: Drug analysis, clinical chemistry, research applications
2. Semi-Micro Volumetric Pipettes (0.1-1 mL)
- Volume Range: 100-1000 μL
- Applications: Specialized analytical work, small sample analysis
- Accuracy: Typically ±0.002-0.006 mL
- Common uses: Trace analysis, expensive reagent work, microscale preparations
3. Micro Volumetric Pipettes (<0.1 mL)
- Volume Range: 10-100 μL
- Applications: Highly specialized work, research applications
- Accuracy: Typically ±0.0005-0.002 mL
- Common uses: Molecular biology, specialized research, trace element analysis
Classification by Design Features
1. Class A Volumetric Pipettes
- Precision Grade: Highest accuracy available, typically meeting or exceeding ASTM and ISO standards
- Tolerance Limits: Very tight tolerances, usually ±0.1% or better
- Applications: Critical analytical work, reference methods, research
- Certification: Individual certificates of accuracy often provided
- Cost: Premium pricing due to precision manufacturing and testing
2. Class B Volumetric Pipettes
- Standard Grade: Good accuracy suitable for most routine work
- Tolerance Limits: Typically ±0.2-0.3% of nominal volume
- Applications: Routine analytical work, educational use, general laboratory work
- Cost: More economical option for non-critical applications
3. Blow-out vs. Non-blow-out Designs
Blow-out Pipettes:
- Feature a frosted ring or marking near the delivery tip
- Require forced expulsion of the final drop for complete delivery
- Used when total volume transfer is critical
- Common in applications requiring quantitative transfer
Non-blow-out Pipettes (To Deliver – TD):
- Designed to deliver the specified volume by free drainage
- A small volume remains in the tip after drainage
- Most common type for general analytical work
- Calibrated to account for the retained volume
Specialized Types
1. Serological Pipettes
- Feature graduations along the entire length
- Can deliver multiple volumes
- Often used in biological applications
- Typically require blow-out for complete delivery
2. Measuring Pipettes
- Have graduations similar to burettes
- Allow measurement of various volumes
- Less accurate than true volumetric pipettes
- Useful for approximate measurements
3. Safety Pipettes
- Designed with safety features to prevent mouth pipetting
- May include built-in filtering systems
- Essential for hazardous or biological materials
- Required in many modern laboratory safety protocols
Standard Sizes and Specifications
Common Volume Capacities
| Range | Volume | Equivalent (mL) | Primary Applications |
|---|---|---|---|
| Ultra-Micro | 10 μL | 0.01 mL | Specialized research applications |
| 25 μL | 0.025 mL | Molecular biology, trace analysis | |
| 50 μL | 0.05 mL | Microscale analytical work | |
| 100 μL | 0.1 mL | Small volume precise measurements | |
| Micro | 200 μL | 0.2 mL | Clinical diagnostics, specialized analysis |
| 250 μL | 0.25 mL | Research applications, small sample work | |
| 500 μL | 0.5 mL | Routine microscale work | |
| 1000 μL | 1.0 mL | Bridge between micro and macro applications | |
| Macro | 2 mL | 2 mL | Small-scale analytical work |
| 5 mL | 5 mL | Standard analytical applications | |
| 10 mL | 10 mL | Common general laboratory use | |
| 15 mL | 15 mL | Specialized applications | |
| 20 mL | 20 mL | Medium-scale preparations | |
| 25 mL | 25 mL | Standard analytical volume | |
| 50 mL | 50 mL | Large-scale analytical work | |
| 100 mL | 100 mL | Bulk solution preparation |
Accuracy and Precision Specifications
| Volume | Class A Tolerance | Class B Tolerance | Relative Accuracy (%) | Overall Length (mm) |
|---|---|---|---|---|
| 1 mL | ±0.007 mL | ±0.014 mL | ±0.7% | 300-350 |
| 2 mL | ±0.010 mL | ±0.020 mL | ±0.5% | 300-350 |
| 5 mL | ±0.015 mL | ±0.030 mL | ±0.3% | 350-400 |
| 10 mL | ±0.020 mL | ±0.040 mL | ±0.2% | 350-400 |
| 15 mL | ±0.025 mL | ±0.050 mL | ±0.17% | 400-450 |
| 20 mL | ±0.030 mL | ±0.060 mL | ±0.15% | 400-450 |
| 25 mL | ±0.030 mL | ±0.060 mL | ±0.12% | 400-450 |
| 50 mL | ±0.050 mL | ±0.100 mL | ±0.10% | 400-450 |
| 100 mL | ±0.080 mL | ±0.160 mL | ±0.08% | 450-500 |
Technical Specifications Summary
| Specification Category | Details |
|---|---|
| Delivery Tip Internal Diameter | Precisely controlled for consistent flow rates (0.5-2.0 mm depending on volume) |
| Delivery Tip Length | Optimized for complete drainage (15-25 mm typical) |
| Delivery Tip Angle | Slightly tapered for clean delivery and minimal dripping |
| Bulb Shape | Spherical or bulbous to minimize surface area to volume ratio |
| Graduation Mark Position | Located on neck above bulb for optimal meniscus reading |
| Material Thickness | 1.0-2.0 mm borosilicate glass for durability and thermal stability |
| Calibration Temperature | 20°C ± 1°C (standard reference temperature) |
| Drainage Time | 15-30 seconds for complete delivery (volume dependent) |
Proper Usage Techniques
Pre-use Preparation
1. Visual Inspection
- Check for cracks, chips, or damage to the glass
- Ensure the delivery tip is not chipped or damaged
- Verify that graduation marks are clearly visible and undamaged
- Confirm the pipette is clean and free from residues
2. Cleaning Procedure
- Rinse with distilled water
- If necessary, use appropriate cleaning solutions (chromic acid, detergent solutions)
- Rinse thoroughly with distilled water
- Air dry or rinse with the solution to be measured
3. Rinsing with Sample
- Fill the pipette with a small amount of the solution to be measured
- Rotate to coat all internal surfaces
- Discard the rinse solution
- Repeat 2-3 times for critical measurements
Filling Technique
1. Safety Considerations
- Never pipette by mouth
- Always use a pipette filler, bulb, or automated device
- Ensure proper ventilation when working with volatile substances
- Use appropriate personal protective equipment
2. Filling Procedure
- Insert the delivery tip well below the liquid surface
- Apply gentle, steady suction
- Fill slowly to avoid overshooting the graduation mark
- Stop suction when the meniscus approaches the graduation mark
- Fine-tune to exact alignment using controlled release of pressure
3. Meniscus Reading
- Hold the pipette vertically
- View at eye level
- Align the bottom of the meniscus with the graduation mark
- Ensure consistent lighting for accurate reading
- Account for parallax errors by maintaining proper viewing angle
Delivery Technique
1. Positioning
- Hold the pipette vertically or at a slight angle
- Touch the delivery tip to the side of the receiving vessel
- Maintain contact between tip and vessel wall during delivery
2. Drainage Control
- Allow free drainage by gravity
- Do not force or blow out unless specified (blow-out pipettes)
- Maintain tip contact with vessel wall throughout drainage
- Allow sufficient time for complete drainage (typically 15-30 seconds)
3. Final Steps
- For non-blow-out pipettes, do not expel the remaining drop
- For blow-out pipettes, expel the final drop using the pipetting device
- Remove pipette with tip still in contact with vessel wall
- Clean immediately after use
Maintenance and Care
Regular Cleaning Protocols
Daily Maintenance:
- Rinse thoroughly with distilled water after each use
- Store in vertical position with tips protected
- Inspect for damage or wear
- Record any issues in maintenance logs
Weekly Deep Cleaning:
- Soak in appropriate cleaning solution
- Use soft brushes for internal cleaning if necessary
- Rinse extensively with distilled water
- Dry thoroughly before storage
- Check calibration marks for clarity
Monthly Inspection:
- Detailed visual inspection for cracks or chips
- Check flow rate consistency
- Verify graduation mark visibility
- Assess overall condition and performance
Storage Requirements
Physical Storage:
- Store vertically in proper racks or holders
- Protect tips from damage
- Ensure adequate spacing to prevent contact
- Maintain clean, dust-free environment
Environmental Conditions:
- Store at room temperature (15-25°C)
- Avoid extreme temperature fluctuations
- Maintain low humidity to prevent condensation
- Protect from direct sunlight and UV exposure
Calibration and Verification
Routine Verification:
- Check accuracy using gravimetric methods
- Use distilled water at known temperature
- Weigh delivered volumes on analytical balance
- Compare results to specified tolerances
- Document all verification results
Professional Calibration:
- Annual calibration by qualified service provider
- Certification for critical analytical work
- Replacement of pipettes outside tolerance limits
- Maintenance of calibration records and certificates
Quality Control and Error Sources
Common Sources of Error
1. Temperature Effects
- Thermal expansion of both glass and liquid
- Changes in liquid viscosity and surface tension
- Calibration temperature vs. use temperature differences
- Solutions: Temperature equilibration, correction factors
2. Technique-Related Errors
- Inconsistent filling techniques
- Improper meniscus reading
- Inadequate drainage time
- Variable tip positioning during delivery
3. Contamination Issues
- Residual cleaning solutions
- Cross-contamination between samples
- Degraded or dirty pipette surfaces
- Inadequate rinsing procedures
4. Environmental Factors
- Atmospheric pressure variations
- Humidity effects on surface tension
- Air currents affecting drainage
- Vibration during critical measurements
Error Minimization Strategies
Standardized Procedures:
- Develop and follow written protocols
- Train all users in proper techniques
- Regular competency assessments
- Documentation of all procedures
Quality Control Measures:
- Regular accuracy checks
- Duplicate measurements for critical work
- Use of certified reference materials
- Statistical analysis of measurement data
Equipment Management:
- Regular maintenance schedules
- Proper storage and handling
- Immediate replacement of damaged equipment
- Calibration and certification programs
Comparison with Other Pipetting Methods
Volumetric vs. Graduated Pipettes
Volumetric Pipettes Advantages:
- Higher accuracy and precision
- Single-volume design eliminates parallax errors
- Better suited for quantitative analytical work
- More consistent results between operators
Graduated Pipettes Advantages:
- Flexibility in volume measurement
- More economical for multiple volume needs
- Faster for approximate measurements
- Useful for titration work
Volumetric vs. Micropipettes
Volumetric Pipettes Advantages:
- Higher accuracy for larger volumes (>1 mL)
- No mechanical parts to malfunction
- Lower cost for routine applications
- Easy to clean and maintain
Micropipettes Advantages:
- Superior for small volumes (<1 mL)
- Faster operation
- Digital display for volume setting
- Reduced contamination risk
Volumetric vs. Automated Systems
Volumetric Pipettes Advantages:
- Lower initial cost
- Simple operation and maintenance
- High reliability
- Independent of power supply
Automated Systems Advantages:
- Higher throughput
- Reduced operator fatigue
- Better reproducibility for repetitive work
- Data logging capabilities
Safety Considerations
Chemical Safety
Hazardous Materials:
- Never mouth pipette any solution
- Use appropriate fume hoods for volatile substances
- Wear proper personal protective equipment
- Follow material safety data sheet requirements
Biological Safety:
- Use sterile techniques when required
- Implement proper disposal procedures for biological materials
- Consider aerosol generation during pipetting
- Use appropriate biosafety cabinets when necessary
Physical Safety
Glass Hazards:
- Handle with care to prevent breakage
- Dispose of broken glass in appropriate containers
- Report any chips or cracks immediately
- Use proper lifting and carrying techniques
Ergonomic Considerations:
- Use proper posture during pipetting operations
- Take breaks during extended pipetting sessions
- Use pipetting aids to reduce hand strain
- Maintain proper work surface height
Future Developments and Trends
Technological Advances
Smart Glass Technology:
- Integration of electronic sensors
- Real-time volume monitoring
- Automated data logging
- Wireless connectivity for data management
Advanced Materials:
- Improved glass formulations for better chemical resistance
- Specialized coatings for reduced surface effects
- Enhanced durability and longevity
- Better temperature stability
Automation Integration
Robotic Compatibility:
- Design modifications for robotic handling
- Standardized interfaces for automated systems
- Integration with laboratory information management systems
- Remote operation capabilities
Quality Assurance Integration:
- Built-in calibration verification
- Automated tolerance checking
- Real-time quality control monitoring
- Enhanced traceability and documentation
Conclusion
The volumetric pipette remains an indispensable tool in modern analytical chemistry, providing the precision and accuracy required for quantitative analysis across diverse fields. Its simple yet elegant design, based on fundamental principles of physics and fluid mechanics, continues to serve as the foundation for accurate liquid measurement in laboratories worldwide.
Understanding the proper selection, use, and maintenance of volumetric pipettes is essential for anyone involved in analytical work. The key to successful pipetting lies not only in understanding the instrument itself but also in developing proper technique, maintaining equipment in optimal condition, and implementing appropriate quality control measures.
As analytical requirements become increasingly stringent and sample sizes continue to decrease, the role of volumetric pipettes in ensuring measurement accuracy becomes even more critical. While newer technologies such as electronic pipettes and automated systems offer advantages in specific applications, the fundamental reliability, simplicity, and accuracy of volumetric pipettes ensure their continued importance in analytical laboratories.
The investment in high-quality volumetric pipettes, combined with proper training and maintenance, represents one of the most cost-effective approaches to achieving reliable analytical results. For laboratories committed to producing accurate, reproducible data, the volumetric pipette remains an essential component of their analytical toolkit.
By following the principles and procedures outlined in this comprehensive guide, laboratory professionals can maximize the performance of their volumetric pipettes and ensure the highest quality results in their analytical work. The combination of understanding fundamental principles, mastering proper techniques, and implementing rigorous quality control measures will result in the accurate, precise measurements that are the hallmark of professional analytical chemistry.
References
- Chemistry LibreTexts. (2023). “Use of a Volumetric Pipet – Laboratory Techniques.” Chemistry LibreTexts. Available at: https://chem.libretexts.org/Ancillary_Materials/Demos_Techniques_and_Experiments/General_Lab_Techniques/Use_of_a_Volumetric_Pipet
- Pipette.com. (2023). “What is a Volumetric Pipette – Complete Guide and Applications.” Solutions by Pipette.com. Available at: https://solutions.pipette.com/what-is-a-volumetric-pipette/
- Thomas Scientific. (2024). “Volumetric Pipettes – Laboratory Equipment and Specifications.” Thomas Scientific Laboratory Supplies. Available at: https://www.thomassci.com/laboratory-supplies/pipets/volumetric-pipets
