Understanding Distillation Flask: Definition, Functions, Working Principles, Types, and Maintenance

The distillation flask stands as one of the most fundamental pieces of equipment in any chemistry laboratory. This specialized glassware serves as the cornerstone of separation processes, enabling scientists and researchers to purify liquids and isolate specific compounds with remarkable precision. Whether you’re a student beginning your journey in chemistry or a seasoned professional seeking to optimize your laboratory procedures, understanding the intricacies of distillation flasks is essential for successful experimental outcomes.

What is a Distillation Flask?

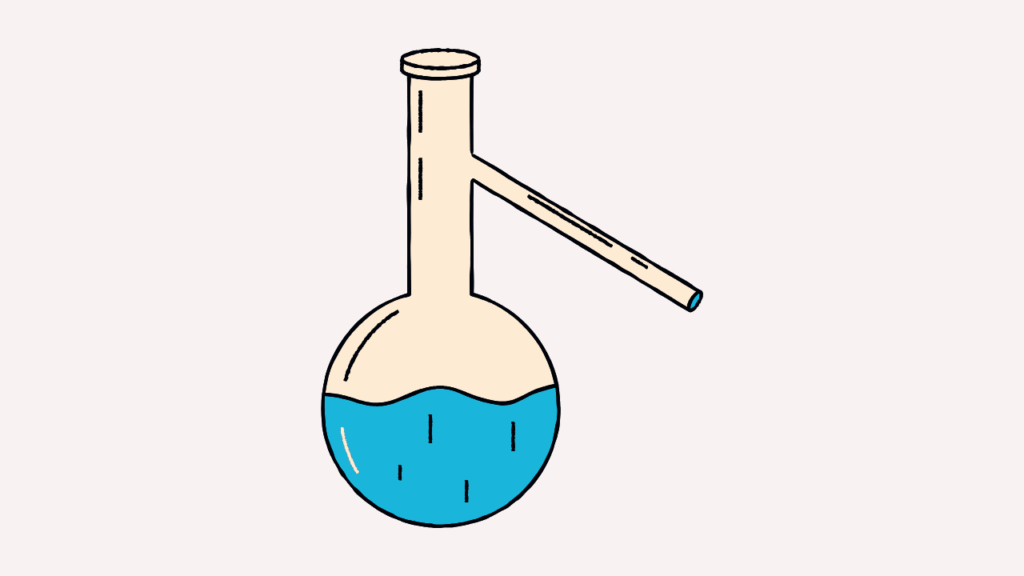

A distillation flask is a round-bottomed or flat-bottomed glass vessel specifically designed for the distillation process. This laboratory apparatus typically features a bulbous body that tapers into a narrow neck, often equipped with one or more side arms for vapor collection. The unique design maximizes surface area for efficient heat transfer while minimizing hot spots that could cause bumping or uneven heating.

The flask’s construction from borosilicate glass ensures excellent thermal resistance and chemical inertness, making it suitable for a wide range of applications involving various solvents and chemical compounds. The smooth, curved interior surface facilitates proper liquid circulation and prevents the formation of superheated pockets that could lead to violent boiling.

Primary Functions of Distillation Flask

1. Liquid Separation and Purification

The primary function of a distillation flask is to separate liquid mixtures based on differences in boiling points. This process allows for the isolation of pure compounds from complex mixtures, making it invaluable in both analytical and preparative chemistry.

2. Solvent Recovery

In industrial and research settings, distillation flasks enable the recovery and recycling of expensive solvents, reducing waste and operational costs while promoting environmental sustainability.

3. Concentration of Solutions

These flasks facilitate the concentration of dilute solutions by removing volatile components, allowing researchers to achieve desired concentrations for subsequent reactions or analyses.

4. Fractional Distillation

When equipped with appropriate fractionating columns, distillation flasks enable the separation of components with similar boiling points through multiple theoretical plates, achieving high-purity separations.

Working Principles

Heat Transfer Mechanism

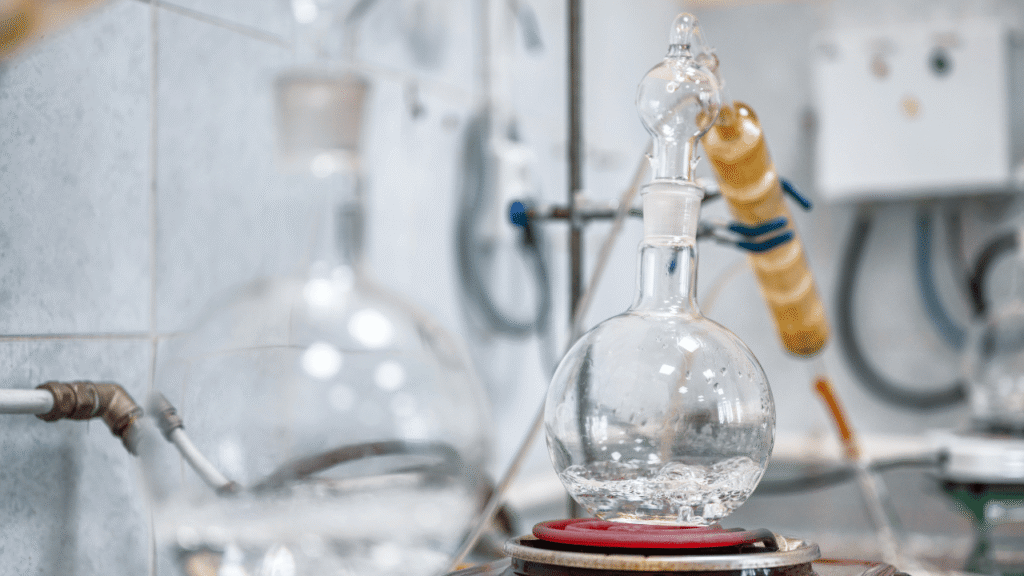

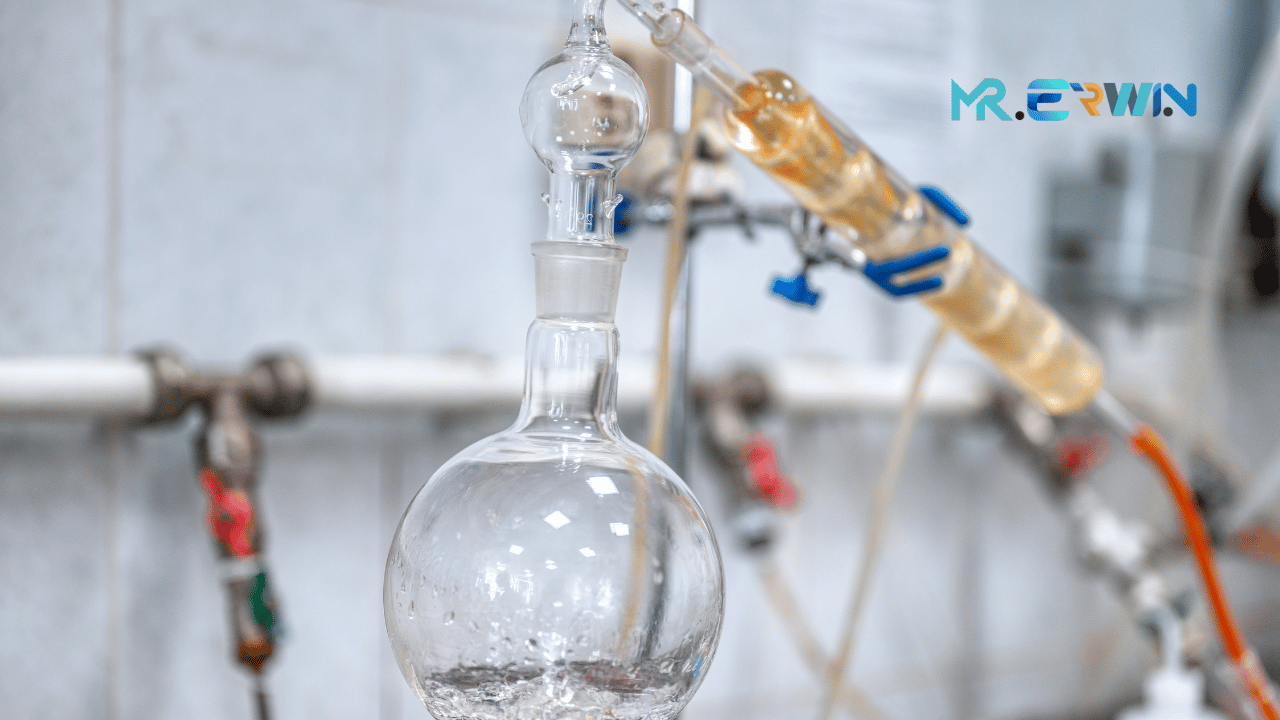

The distillation flask operates on the principle of selective vaporization and condensation. When heat is applied to the bottom of the flask, the liquid mixture begins to vaporize. Components with lower boiling points vaporize first, creating vapor that rises through the neck of the flask.

Vapor-Liquid Equilibrium

The effectiveness of distillation depends on establishing proper vapor-liquid equilibrium. The curved design of the flask promotes uniform heating and prevents localized overheating, ensuring consistent vaporization rates and optimal separation efficiency.

Temperature Control

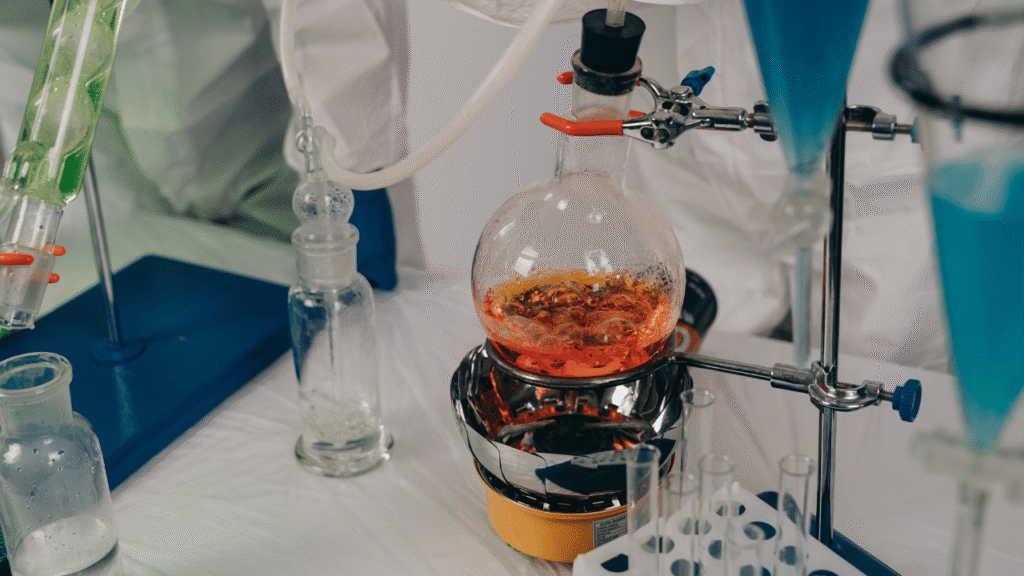

Precise temperature control is crucial for successful distillation. The flask’s design allows for even heat distribution, while the use of appropriate heating mantles or oil baths ensures stable operating conditions throughout the process.

Types of Distillation Flasks

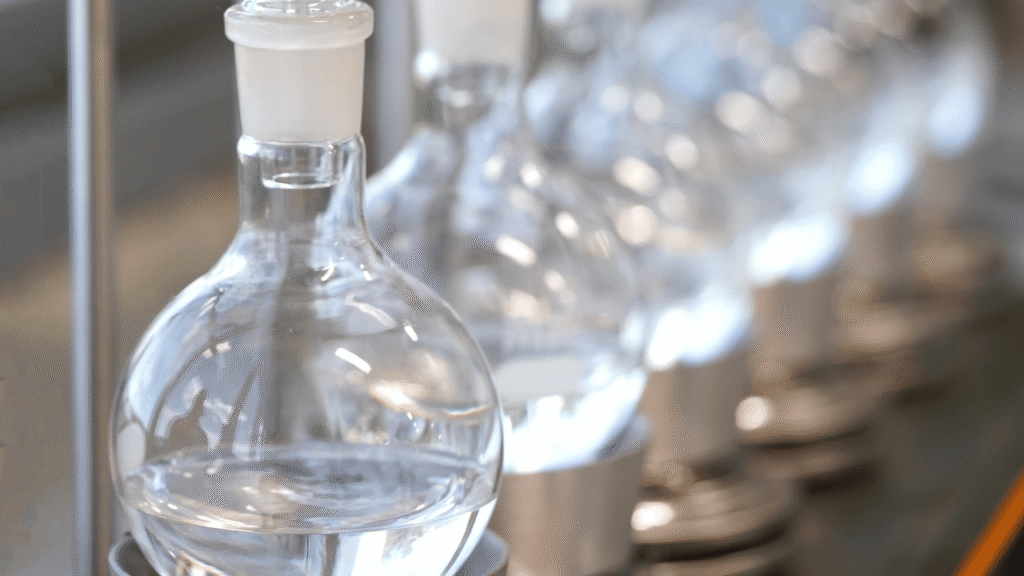

1. Round-Bottom Flask

Characteristics:

• Spherical bottom design for maximum surface area
• Available in volumes ranging from 25mL to 20L
• Single or multiple necks for versatile applications

Applications:

• Simple distillation procedures
• Vacuum distillation
• Reflux reactions

2. Flat-Bottom Flask

Characteristics:

• Flat base for stability on heating surfaces
• Easier to clean and handle
• Limited to lower-temperature applications

Applications:

• Atmospheric pressure distillations
• Educational demonstrations
• Small-scale laboratory work

3. Pear-Shaped Flask

Characteristics:

• Elongated, pear-like shape
• Reduced surface area compared to round-bottom flasks
• Better liquid retention during distillation

Applications:

• Rotary evaporation
• Concentration of solutions
• Small-volume distillations

4. Claisen Flask

Characteristics:

• Multiple necks (typically two or three)
• Allows for simultaneous temperature monitoring and addition of reagents
• Enhanced versatility in complex procedures

Applications:

• Fractional distillation
• Multi-component separations
• Reactions requiring continuous monitoring

5. Vacuum Distillation Flask

Characteristics:

• Reinforced construction for low-pressure applications
• Specialized joints for vacuum connections
• Thick walls to withstand pressure differentials

Applications:

• High-boiling point compound distillation
• Heat-sensitive material processing
• Pharmaceutical manufacturing

Selection Criteria for Distillation Flasks

Volume Considerations

Choose flask capacity based on sample volume, typically 2-3 times the liquid volume to prevent overflow and ensure adequate vapor space.

Neck Configuration

Select single-neck flasks for simple distillations or multiple-neck versions for complex procedures requiring additional access points.

Joint Size Compatibility

Ensure proper joint sizes (14/20, 19/22, 24/29, etc.) for seamless connection with condensers, thermometer adapters, and other glassware components.

Material Quality

Invest in high-quality borosilicate glass flasks that offer superior thermal shock resistance and chemical durability.

Proper Operating Procedures

Setup Preparation

1. Inspect the flask for cracks, chips, or other damage
2. Ensure all joints are clean and properly greased
3. Secure the flask in an appropriate heating mantle or clamp system
4. Connect necessary components (condenser, thermometer, collection vessel)

Heating Protocol

1. Begin with gentle heating to prevent thermal shock
2. Gradually increase temperature while monitoring vapor formation
3. Maintain steady distillation rate (typically 1-3 drops per second)
4. Monitor temperature readings throughout the process

Safety Considerations

1. Always use appropriate personal protective equipment
2. Ensure adequate ventilation in the work area
3. Keep fire extinguishing equipment readily available
4. Never leave distillation apparatus unattended

Maintenance and Care Guidelines

Daily Cleaning Procedures

Immediate Post-Use Cleaning:

1. Allow the flask to cool completely before handling
2. Rinse with appropriate solvents to remove residual materials
3. Use mild detergent solutions for thorough cleaning
4. Rinse multiple times with distilled water

Deep Cleaning Methods

For Stubborn Residues:

1. Soak in chromic acid cleaning solution (handle with extreme caution)
2. Use ultrasonic cleaning baths for enhanced residue removal
3. Apply acetone or other appropriate organic solvents
4. Consider piranha solution for organic contamination (expert use only)

Inspection and Storage

Regular Maintenance Checks:

1. Examine for stress fractures, particularly around joints
2. Check for scratches that could become crack initiation points
3. Verify joint alignment and smoothness
4. Store in protective foam or dedicated glassware cabinets

Preventive Care Measures

1. Avoid rapid temperature changes that cause thermal stress
2. Use heating mantles rather than direct flame heating
3. Support the flask properly during use to prevent mechanical stress
4. Replace damaged flasks immediately to prevent accidents

Troubleshooting Common Issues

Bumping and Violent Boiling

Causes: Superheating, smooth glass surfaces, rapid heating Solutions: Add boiling stones, reduce heating rate, use magnetic stirring

Poor Separation Efficiency

Causes: Improper heating, inadequate reflux, contaminated flask Solutions: Optimize heating rate, clean thoroughly, check for leaks

Thermal Stress Cracking

Causes: Rapid temperature changes, uneven heating, mechanical stress Solutions: Gradual temperature changes, proper support, quality heating equipment

Advanced Applications and Techniques

Vacuum Distillation Optimization

Utilize vacuum pumps and cold traps to enable distillation of high-boiling compounds at reduced temperatures, preventing thermal decomposition.

Fractional Distillation Enhancement

Incorporate packed columns or theoretical plates to achieve superior separation of components with similar boiling points.

Automated Distillation Systems

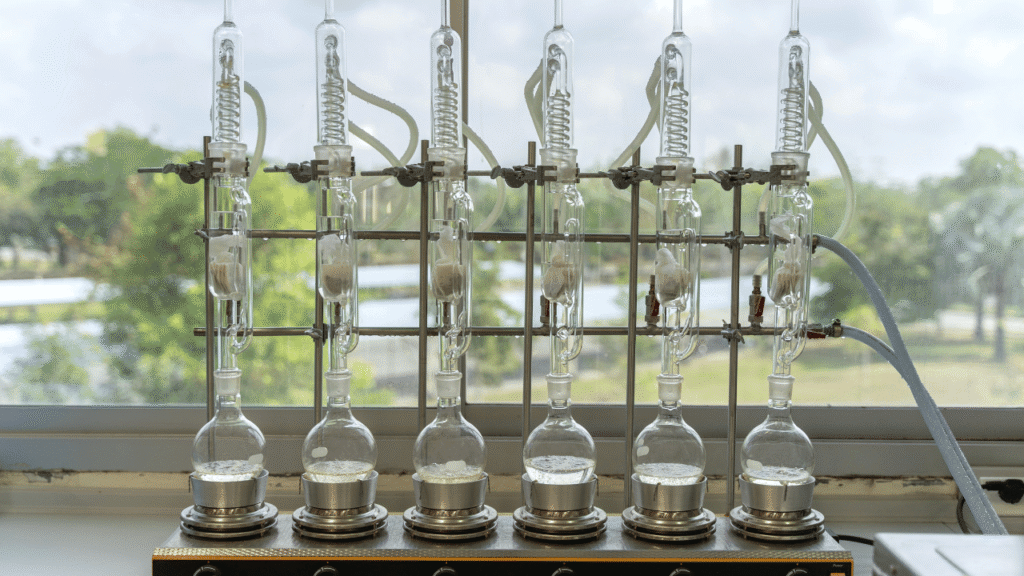

Modern laboratories increasingly employ automated distillation systems that integrate temperature control, fraction collection, and data logging capabilities.

Economic and Environmental Considerations

Cost-Effectiveness

Proper maintenance and careful handling extend flask lifespan, reducing replacement costs and laboratory downtime.

Sustainability Practices

Implement solvent recovery programs using distillation flasks to minimize waste generation and reduce environmental impact.

Energy Efficiency

Optimize heating protocols and insulation to reduce energy consumption during distillation procedures.

Conclusion

The distillation flask remains an indispensable tool in modern laboratories, facilitating crucial separation and purification processes across numerous scientific disciplines. Understanding its design principles, operational requirements, and maintenance needs ensures optimal performance and longevity. By selecting appropriate flask types, implementing proper procedures, and maintaining equipment diligently, laboratory professionals can achieve consistent, high-quality results while maximizing safety and efficiency.

Whether conducting routine analytical procedures or complex research investigations, the distillation flask continues to serve as a reliable foundation for scientific advancement. As laboratory techniques evolve and new challenges emerge, the fundamental principles governing distillation flask operation remain constant, making this knowledge invaluable for current and future scientific endeavors.

The investment in quality distillation flasks and proper training in their use pays dividends through improved experimental outcomes, enhanced safety, and reduced operational costs. By following the guidelines outlined in this comprehensive guide, laboratory professionals can harness the full potential of these versatile instruments while maintaining the highest standards of scientific excellence.
