Understanding Bunsen Burner: Definition, Function, Working Mechanism, Types and Usage
The Bunsen burner stands as one of the most fundamental and recognizable pieces of laboratory equipment in scientific research and education. Named after German chemist Robert Bunsen, who perfected its design in 1855, this essential heating device has remained virtually unchanged for over 150 years, testament to its practical and efficient design.
In modern laboratories, chemistry classrooms, and research facilities worldwide, the Bunsen burner continues to serve as an indispensable tool for heating, sterilization, and various experimental procedures. Understanding its operation, types, and proper usage is crucial for anyone working in scientific environments.
What is a Bunsen Burner?

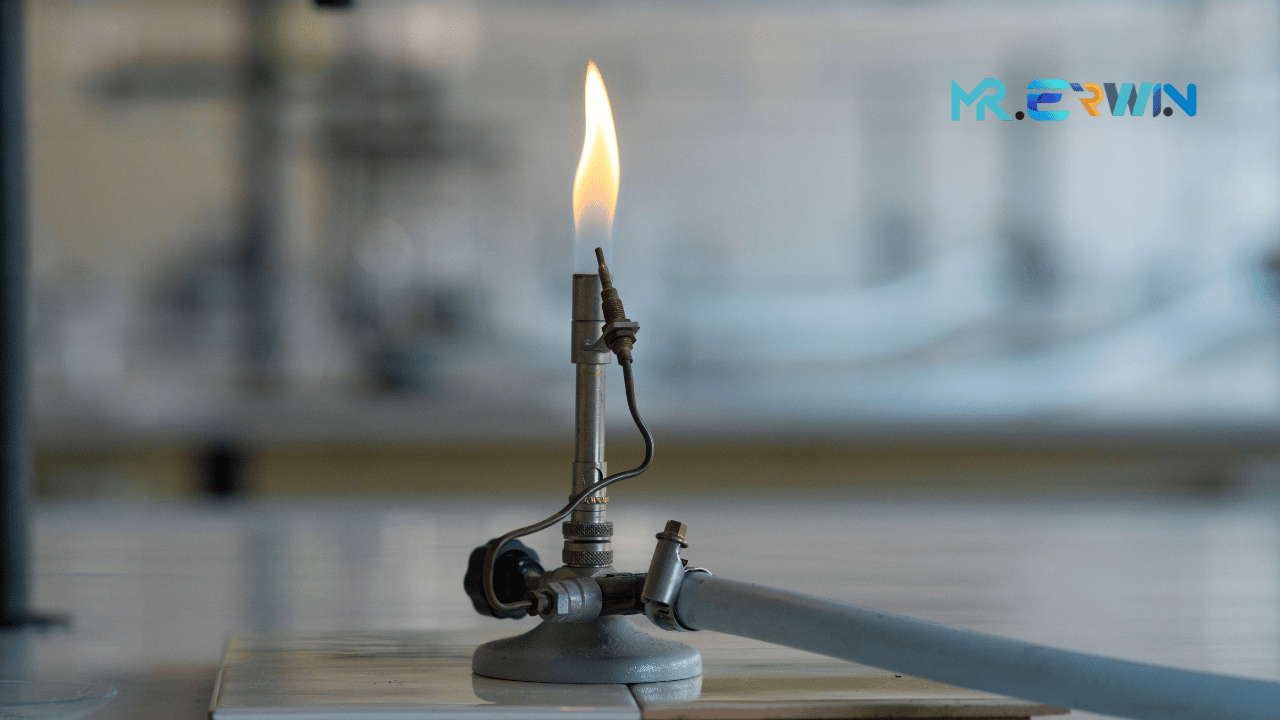

A Bunsen burner is a laboratory heating device that produces a controlled flame through the combustion of gas mixed with air. The device consists of a vertical metal tube connected to a gas source, with adjustable air intake mechanisms that allow precise control over the flame characteristics.
The fundamental principle behind the Bunsen burner involves mixing combustible gas (typically natural gas or propane) with air in controlled proportions to achieve different flame types and temperatures. This simple yet effective design makes it an ideal tool for various laboratory applications requiring controlled heating.
Primary Functions of Bunsen Burners
Heating Applications
The primary function of a Bunsen burner is to provide controlled heat for various laboratory procedures. This includes heating chemical solutions, melting substances, and facilitating chemical reactions that require specific temperature conditions.
Sterilization Processes
Bunsen burners play a crucial role in sterilizing laboratory equipment such as inoculating loops, forceps, and glass rods. The high-temperature flame effectively eliminates microorganisms, making it essential for microbiological work.
Flame Testing
In analytical chemistry, Bunsen burners are used for flame tests to identify the presence of specific metal ions in compounds. Different metals produce characteristic colors when heated in the flame, allowing for qualitative analysis.
Glassworking
The controlled flame of a Bunsen burner is ideal for bending and shaping glass tubing, sealing glass containers, and performing other glasswork tasks common in laboratory settings.
How Does a Bunsen Burner Work?
Basic Operating Mechanism
The working principle of a Bunsen burner is based on the Venturi effect. Gas flows through a narrow opening at high velocity, creating a low-pressure zone that draws air into the mixing chamber through adjustable air holes.
Gas Flow Process
When the gas valve is opened, fuel gas travels up through the base of the burner. As it passes through the jet at the bottom of the barrel, it creates suction that draws air through the air holes in the collar surrounding the barrel base.
Air-Gas Mixing
The amount of air mixed with the gas determines the flame characteristics. With air holes closed, the flame receives insufficient oxygen, producing a yellow, luminous flame. With air holes fully open, complete combustion occurs, creating a blue, non-luminous flame.
Combustion Zones
A properly adjusted Bunsen burner flame has distinct zones: the inner cone (unburned gas mixture), the middle zone (partial combustion), and the outer zone (complete combustion with maximum temperature).
Types of Bunsen Burners
Standard Bunsen Burner

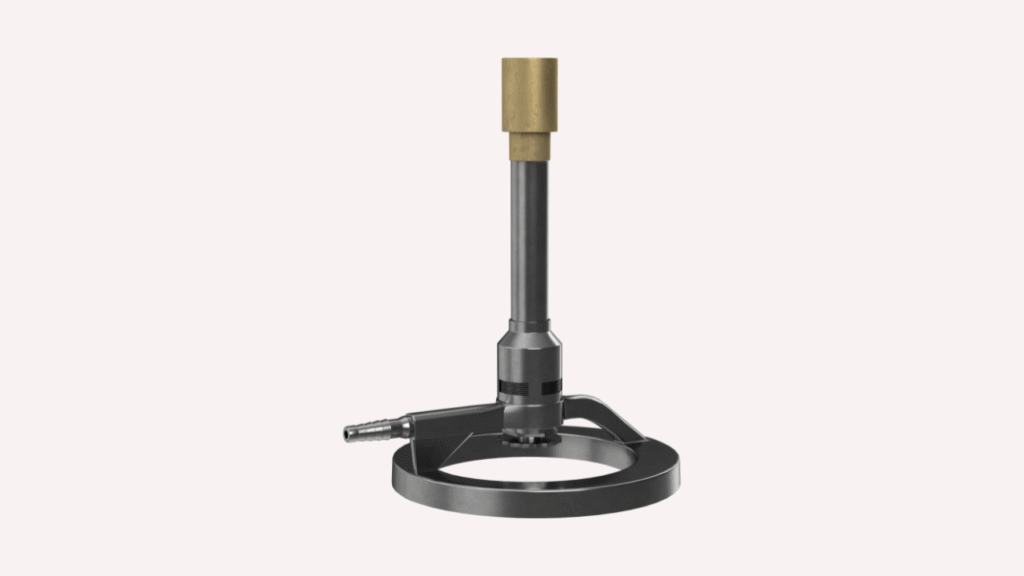

The classic design features a simple vertical tube with a gas inlet at the base and an adjustable collar controlling air intake. This type is most commonly found in educational laboratories and basic research facilities.
Tirrill Burner
An enhanced version of the standard Bunsen burner, the Tirrill burner includes additional features such as a needle valve for precise gas flow control and a more sophisticated air regulation system, allowing for finer flame adjustment.
Meker Burner
The Meker burner incorporates a grid or screen at the top of the barrel, creating multiple small flames that produce a broader, more evenly distributed heat pattern. This design is particularly useful when heating larger objects or when uniform heating is required.
Fisher Burner
Similar to the Meker burner, the Fisher burner features a special top that spreads the flame over a larger area while maintaining high temperature. It’s commonly used in applications requiring intense, widespread heating.
Micro Burner
Designed for delicate work, micro burners produce small, precise flames ideal for detailed glasswork, micro-scale chemistry, and applications where space is limited or precise heating control is essential.
Proper Usage and Safety Guidelines
Initial Setup
Before using a Bunsen burner, ensure the gas supply is properly connected and all safety equipment is within reach. Check that the work area is clear of flammable materials and that adequate ventilation is available.
Lighting Procedure
Always light the match or striker before turning on the gas. Hold the flame at the top of the barrel while slowly opening the gas valve. This prevents gas accumulation and reduces the risk of flashback or explosion.
Flame Adjustment
Start with the air holes closed to produce a yellow flame, then gradually open the air intake to achieve the desired blue flame. The hottest part of the flame is just above the inner blue cone, reaching temperatures of approximately 1500°C (2732°F).
Safety Precautions
Never leave a lit Bunsen burner unattended. Keep long hair tied back and avoid loose clothing near the flame. Always turn off the gas supply when the burner is not in use, and allow the equipment to cool completely before storage.
Maintenance Requirements
Regular cleaning of the air holes and gas jet prevents blockages that can affect flame quality. Inspect connections for leaks using soapy water, and replace worn components as needed to ensure safe operation.
Applications in Different Fields
Educational Settings
In chemistry and biology classes, Bunsen burners serve as essential teaching tools, helping students understand combustion principles, practice laboratory techniques, and conduct basic experiments safely.
Research Laboratories
Advanced research facilities utilize Bunsen burners for sample preparation, sterilization of equipment, and specialized procedures requiring controlled heating in analytical chemistry and microbiology.
Industrial Applications
Quality control laboratories in manufacturing industries employ Bunsen burners for testing materials, conducting flame tests, and performing various analytical procedures essential for product development and safety verification.
Medical and Pharmaceutical Labs
These facilities rely on Bunsen burners for sterilization procedures, preparation of culture media, and various analytical tests crucial for drug development and medical research.
Advantages and Limitations
Key Advantages
Bunsen burners offer precise temperature control, instant heat availability, clean combustion with proper adjustment, cost-effective operation, and simple maintenance requirements. Their reliability and ease of use make them indispensable in most laboratory settings.
Notable Limitations
Despite their utility, Bunsen burners have limitations including dependency on gas supply, safety risks associated with open flames, limited maximum temperature compared to specialized heating equipment, and potential for creating thermal drafts that may affect sensitive experiments.
Modern Alternatives and Innovations
While traditional Bunsen burners remain popular, modern alternatives include electric heating mantles, infrared heaters, and microwave digesters. However, for applications requiring open flame heating, sterilization, and flame testing, the Bunsen burner remains irreplaceable.
Recent innovations have focused on improving safety features, such as automatic shut-off mechanisms, enhanced stability bases, and improved air-gas mixing systems that provide better flame control and efficiency.
Conclusion
The Bunsen burner continues to be an essential piece of laboratory equipment, combining simplicity with effectiveness in a design that has proven its worth over more than a century and a half. Understanding its proper operation, maintenance, and safety requirements is fundamental for anyone working in scientific environments.
From basic educational demonstrations to advanced research applications, the Bunsen burner’s versatility and reliability ensure its continued importance in laboratories worldwide. As scientific techniques evolve, this humble yet powerful tool adapts to meet new challenges while maintaining its core function as a precise, controllable source of heat.
Whether you’re a student beginning your scientific journey or a seasoned researcher, mastering the use of the Bunsen burner is an essential skill that will serve you throughout your scientific career. Its enduring design stands as a testament to the power of simple, well-engineered solutions in advancing scientific knowledge and discovery.
