Separating Funnel: Definition, Functions, Working Principles, and Types

In my two decades of laboratory experience, I’ve handled countless pieces of glassware, but few are as elegantly simple yet fundamentally important as the separating funnel. Whether you’re extracting caffeine from coffee beans or purifying organic compounds, this pear-shaped vessel remains an indispensable tool in both teaching laboratories and industrial facilities worldwide.

What is a Separating Funnel?

A separating funnel, also known as a separation funnel or sep funnel in laboratory parlance, is a specialized piece of laboratory glassware designed for liquid-liquid extractions and phase separations. Its distinctive conical or pear-shaped body tapers to a controlled outlet, featuring a stopcock valve at the bottom and typically a ground glass stopper at the top.

The genius of this design lies in its simplicity. When I first encountered one as a chemistry student, I was struck by how such a straightforward apparatus could facilitate complex chemical separations that would otherwise require sophisticated equipment. The funnel exploits the fundamental principle that immiscible liquids of different densities will naturally stratify when left undisturbed.

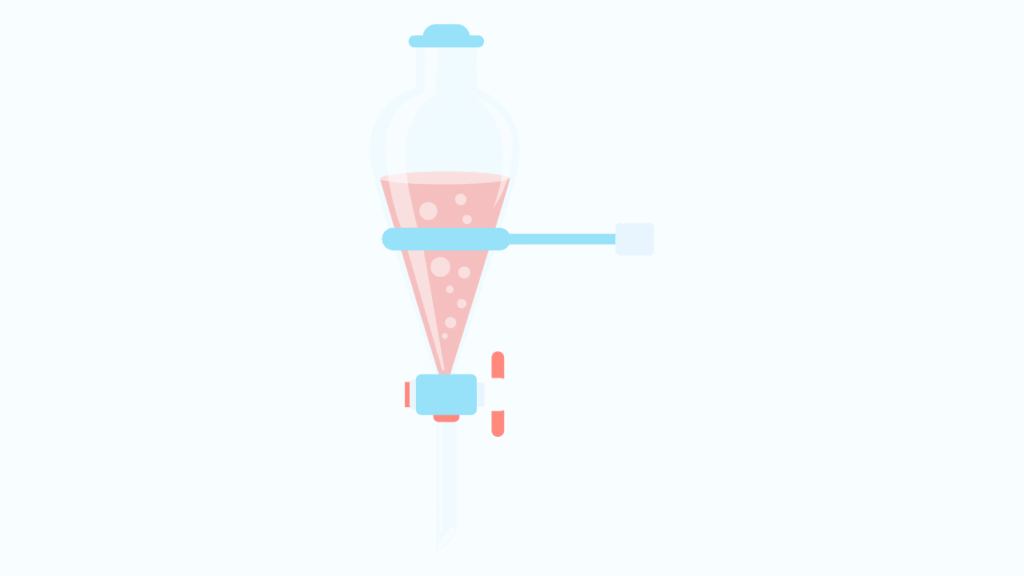

Key Components and Design Features

Every separating funnel consists of several critical components that work in harmony:

The Body: Usually made from borosilicate glass to withstand chemical reactions and temperature changes, the body’s shape promotes efficient phase separation. The wider upper portion provides space for mixing, while the narrow stem concentrates the interface between layers for precise separation.

The Stopcock: This valve mechanism, traditionally made from glass or PTFE (polytetrafluoroethylene), controls the flow rate during separation. In my experience, a well-maintained stopcock is the difference between a clean separation and a frustrating afternoon cleaning up spills.

The Stopper: The ground glass stopper creates an airtight seal, essential when shaking volatile solvents. Modern versions often include a PTFE sleeve to prevent sticking a welcome innovation for anyone who’s struggled with a frozen stopper mid-extraction.

Functions and Applications

The separating funnel serves multiple critical functions in laboratory and industrial settings:

Primary Extraction Operations

The most common application involves extracting desired compounds from aqueous solutions using organic solvents. I’ve personally used this technique extensively in natural product isolation, where we extract plant alkaloids using dichloromethane or ethyl acetate. The efficiency of these extractions often determines the success of entire research projects.

Washing and Purification

Beyond simple extraction, separating funnels excel at removing impurities from organic layers. By washing with aqueous solutions acidic, basic, or neutral we can selectively remove unwanted compounds. This process, though seemingly mundane, forms the backbone of organic synthesis purification.

Phase Separation in Industrial Processes

In industrial settings, scaled-up versions handle everything from petroleum refining to pharmaceutical manufacturing. The principles remain identical, though the stakes are considerably higher when separating tons of material rather than milliliters.

Working Principle and Operational Technique

Understanding the working principle requires grasping both the physics and chemistry involved. When two immiscible liquids are combined, they form distinct layers based on density differences. The denser liquid settles to the bottom, creating a visible interface or meniscus between phases.

Step-by-Step Operation Protocol

Through years of training students, I’ve developed a systematic approach that minimizes errors:

Preparation Phase: First, ensure the stopcock is closed this simple step prevents countless disasters. Support the funnel securely in a ring stand, positioned over a receiving vessel. Check that the stopcock rotates smoothly; a drop of glycerin on the ground glass joint works wonders for stubborn valves.

Loading and Mixing: Add your solutions through the top, leaving approximately 20% headspace for expansion during shaking. This headspace prevents dangerous pressure buildup a lesson often learned the hard way. Secure the stopper firmly, but avoid over-tightening which can cause freezing.

Extraction Technique: Here’s where technique matters. Invert the funnel while supporting both the stopper and stopcock. Begin with gentle swirling rather than vigorous shaking, especially with volatile solvents. The “vent early, vent often” mantra has saved countless researchers from solvent showers. Point the stem away from yourself and others when venting pressure release can be surprisingly forceful.

Separation Process: Return the funnel to its stand and allow complete phase separation. This waiting period tests patience but rewards precision. The interface should be sharp and clearly visible. If emulsions form a common frustration gentle swirling or adding small amounts of saturated salt solution often helps.

Collection: Open the stopcock slowly, allowing the bottom layer to drain. As the interface approaches the stopcock, reduce flow to a dropwise rate. Stop precisely when the interface reaches the bore of the stopcock. This moment requires steady hands and keen observation rushing guarantees cross-contamination.

Types of Separating Funnels

Laboratory suppliers offer various designs, each optimized for specific applications:

Squibb Separating Funnel

The Squibb pattern, with its distinctive pear shape, represents the classic design most chemists envision. Its bulbous bottom provides excellent phase separation for routine extractions. The shape naturally concentrates the interface, making precise separations easier for beginners.

Cylindrical Separating Funnel

These straight-sided variants offer advantages when dealing with small density differences between phases. The uniform diameter provides a consistent interface area, beneficial for kinetic studies. I prefer these when working with chlorinated solvents that barely differ in density from water.

Micro-Scale Separating Funnels

For precious samples or expensive reagents, micro-scale funnels (5-50 mL capacity) prove invaluable. These require steady hands but conserve materials admirably. In natural product research, where starting materials might represent months of cultivation, these specialized funnels are essential.

Continuous Liquid-Liquid Extractors

Though technically different from traditional separating funnels, these sophisticated devices deserve mention. They perform continuous extractions over hours or days, perfect for removing trace compounds. The Soxhlet extractor adaptation for liquid-liquid extraction exemplifies this principle.

Specialized Industrial Designs

Industrial separating funnels incorporate features like jacketed walls for temperature control, multiple outlet ports, and automated valve systems. Some pharmaceutical-grade units include inline sensors monitoring phase boundaries in real-time a far cry from the simple glass funnels of teaching laboratories.

Practical Considerations and Best Practices

Material Compatibility

Not all separating funnels suit every application. While borosilicate glass handles most organic solvents admirably, hydrofluoric acid demands specialized plastic equipment. Similarly, photosensitive reactions require amber glass or covered funnels to prevent degradation.

Pressure Management

Pressure buildup remains the primary safety concern during extractions. Beyond regular venting, consider the vapor pressures of your solvents. Low-boiling solvents like diethyl ether require extra vigilance. I’ve witnessed too many accidents from inadequate venting the sudden release can spray contents across the laboratory.

Emulsion Prevention and Treatment

Emulsions those frustrating stable mixtures that refuse to separate plague even experienced chemists. Prevention beats treatment: avoid excessive agitation, maintain appropriate ionic strength, and choose solvent systems with significant density differences. When emulsions form despite precautions, patience often succeeds where aggressive intervention fails.

Cleaning and Maintenance

Proper maintenance extends equipment life substantially. After use, rinse immediately with appropriate solvents before residues dry. For stubborn residues, chromic acid cleaning solution works wonders, though environmental concerns have led many laboratories to adopt alternative cleaning protocols. Regular stopcock lubrication with appropriate grease prevents freezing and ensures smooth operation.

Common Troubleshooting Issues

Leaking Stopcocks

A leaking stopcock transforms a routine extraction into a hazardous situation. Usually, re-greasing solves the problem, but worn glass-to-glass interfaces may require replacement. PTFE stopcocks, while more expensive, eliminate this issue entirely and resist chemical attack better than glass.

Frozen Stoppers

Few laboratory frustrations match a frozen stopper on a funnel full of valuable product. Prevention involves proper lubrication and avoiding over-tightening. When stuck, gentle tapping with a wooden dowel while applying steady upward pressure usually succeeds. Heating the joint gently with warm water helps, but never use flame near volatile solvents.

Cross-Contamination

Incomplete separations contaminate products and compromise results. Patience during separation and accepting small losses at phase boundaries maintains product purity. In research, purity often matters more than yield a principle sometimes forgotten in the pursuit of quantity.

Safety Considerations

Laboratory safety extends beyond basic precautions when using separating funnels:

Chemical Compatibility: Verify solvent compatibility with all funnel components. Some organic solvents attack stopcock grease, causing leaks or contamination. Keep compatibility charts readily accessible in the laboratory.

Pressure Hazards: Never heat a closed separating funnel thermal expansion creates dangerous pressures. Even room temperature reactions can generate pressure through gas evolution. Stay alert for signs of pressure buildup: bulging stopper, difficulty venting, or visible vapor accumulation.

Support and Stability: Secure mounting prevents tipping accidents. Use appropriate ring stands with properly sized rings. Position collection vessels before beginning separation scrambling for containers while holding an open stopcock invites disaster.

Advanced Techniques and Applications

pH-Dependent Extractions

Manipulating pH enables selective extraction of acidic or basic compounds. By converting molecules between charged and neutral forms, we control their solubility in different phases. This technique elegantly separates complex mixtures that would otherwise require chromatography.

Salting-Out Effects

Adding inorganic salts to aqueous phases decreases organic compound solubility, driving them into organic layers. This technique improves extraction efficiency and helps break emulsions. Sodium chloride remains the standard choice, though specific applications benefit from alternative salts.

Counter-Current Distribution

Though largely superseded by modern chromatography, counter-current distribution using multiple separating funnels once represented cutting-edge separation technology. Understanding these historical techniques provides insight into separation principles that inform modern methods.

Future Developments and Innovations

The fundamental design of separating funnels has remained remarkably stable, but subtle innovations continue. Modern materials like perfluorinated polymers offer superior chemical resistance. Automated systems incorporate sensors and actuators for hands-free operation. Microfluidic devices miniaturize the principle for high-throughput screening applications.

Digital integration represents the newest frontier. Smart laboratories increasingly employ funnels with embedded sensors transmitting real-time data about temperature, pressure, and phase boundaries. These developments don’t replace fundamental understanding but augment human expertise with digital precision.
