What Is a Rubber Pipette Filler and How Does It Work?
In the world of laboratory science, precision and safety go hand in hand. Whether you’re a seasoned researcher, a student just beginning your journey in chemistry, or a laboratory technician handling various chemical solutions daily, you’ve likely encountered one of the most fundamental yet crucial pieces of lab equipment: the rubber pipette filler. This seemingly simple device has revolutionized liquid handling in laboratories worldwide, replacing the dangerous practice of mouth pipetting and ensuring both accuracy and safety in countless experiments.
Understanding the Basics of Pipette Fillers

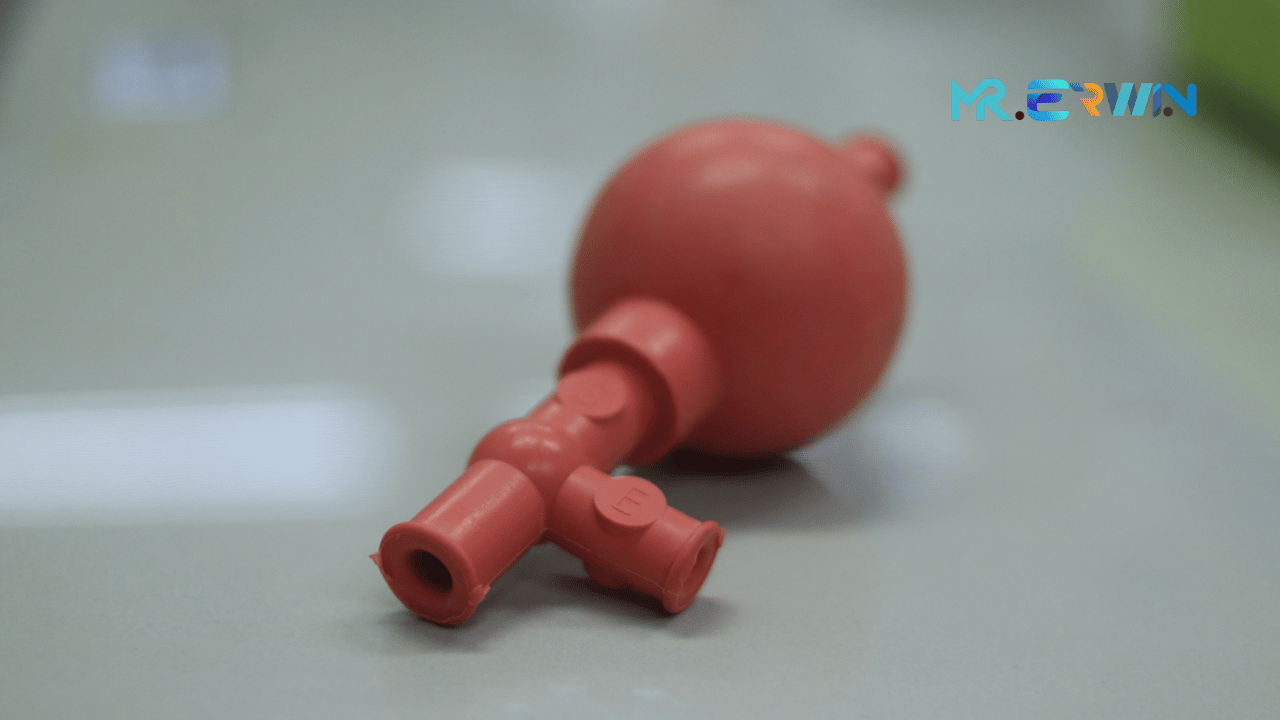

A rubber pipette filler, also known as a pipette bulb or safety pipette filler, is a laboratory instrument designed to create controlled suction for drawing liquids into pipettes. The rubber bulb is squeezed to create a vacuum, which draws liquid into the pipette, eliminating the need for dangerous mouth suction that was once commonplace in laboratories.
The device consists of a hollow rubber bulb with an opening that fits snugly over the top of various pipette sizes. Most modern rubber pipette fillers are made from natural rubber, though some manufacturers now offer silicone alternatives for enhanced chemical resistance. The natural rubber construction provides excellent flexibility and durability, making these tools long-lasting additions to any laboratory setup.
The Evolution from Dangerous Practices
Before the widespread adoption of pipette fillers, laboratory workers often resorted to mouth pipetting – literally sucking liquids into pipettes using their mouths. This practice posed significant health risks, especially when handling toxic, corrosive, or pathogenic materials. The introduction of rubber pipette fillers marked a crucial turning point in laboratory safety protocols, providing a safe and efficient alternative that has become standard practice in modern laboratories.
The transition to using pipette fillers wasn’t just about safety; it also improved accuracy and reproducibility in liquid handling. Human lungs and mouth suction are inherently inconsistent, while properly designed pipette fillers provide more controlled and predictable suction force.

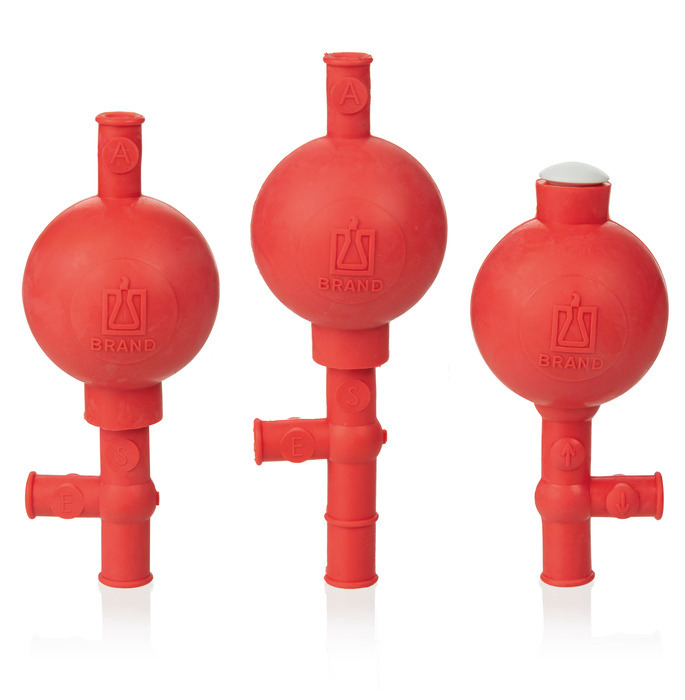

Types of Rubber Pipette Fillers
Simple Rubber Bulb Fillers
The most basic type consists of a single rubber bulb that attaches directly to the pipette. These manual fillers are commonly used for small-scale operations. They consist of a rubber bulb attached to a pipette, allowing for quick suction and release of liquids. While simple in design, these fillers require some skill to operate effectively and may not provide the precision needed for critical measurements.

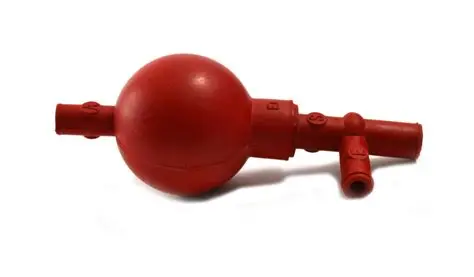

Three-Valve Safety Pipette Fillers
The more sophisticated and widely used version is the three-valve safety pipette filler. Control air evacuation, liquid uptake, and liquid dispensing with three valves, making these devices incredibly versatile and precise. The three valves typically include:
- Valve A (Air/Aspiration): Located at the top of the bulb, this valve is used to expel air from the bulb
- Valve S (Suction): Usually positioned on the side, this valve controls liquid uptake
- Valve E (Expulsion): This valve manages the controlled release of liquid from the pipette
Designed for efficient one-handed operation, these advanced fillers allow laboratory workers to maintain better control over their experiments while keeping one hand free for other tasks.
How Rubber Pipette Fillers Work: A Step-by-Step Process
Understanding the operation of a rubber pipette filler is essential for anyone working in a laboratory environment. The process involves several coordinated steps that, once mastered, become second nature to laboratory professionals.
Step 1: Preparation and Air Expulsion
First expel air by squeezing valve A on the top of the bulb. This step is crucial as it creates the initial vacuum necessary for liquid uptake. The user squeezes the rubber bulb while simultaneously pressing the A valve, forcing air out through the valve mechanism. This action prepares the system for liquid aspiration.
Step 2: Liquid Aspiration
Fill pipette by squeezing valve S on stem. With the pipette tip submerged in the liquid to be transferred, the user gently squeezes the S valve while allowing the compressed bulb to expand. This creates suction that draws the liquid up into the pipette. The amount of liquid drawn depends on the degree of vacuum created and the expansion rate of the bulb.
Step 3: Liquid Transfer and Dispensing
Once the desired volume has been aspirated, the pipette can be moved to the target location. The liquid is then dispensed by gently pressing the E valve, which allows controlled air entry into the system, gradually pushing the liquid out of the pipette. The rate of dispensing can be controlled by the pressure applied to the valve, allowing for precise volume control.
Step 4: Complete Emptying
For complete liquid expulsion, the user may need to squeeze the bulb gently while maintaining pressure on the E valve. This ensures that all liquid is expelled from the pipette, preventing cross-contamination and ensuring accurate volume transfer.
Technical Specifications and Compatibility
Modern rubber pipette fillers are designed to accommodate a wide range of pipette sizes and types. Filler fits standard size pipettes Volume 35 mL Outer Diameter: 54 mm Hole Diameter: 6.0 mm, though specifications can vary between manufacturers.
Most standard fillers can handle pipettes ranging from 1 mL to 50 mL, making them suitable for various laboratory applications. The rubber construction provides enough flexibility to create a secure seal with different pipette neck diameters, while the valve mechanisms are designed to provide consistent performance across multiple uses.
Advantages of Using Rubber Pipette Fillers
Safety Benefits
The primary advantage of rubber pipette fillers is the elimination of mouth pipetting, which protects laboratory workers from accidental ingestion of hazardous materials. This safety improvement cannot be overstated, especially when working with corrosive chemicals, biological samples, or toxic substances.
Improved Accuracy
Pipette fillers provide more consistent suction force compared to manual mouth suction, leading to better reproducibility in liquid handling. The controlled valve system allows for precise volume adjustments, which is crucial for quantitative analyses and sensitive experiments.
Versatility
A single pipette filler can be used with multiple pipette sizes and types, making it a cost-effective solution for laboratories with diverse liquid handling needs. The universal design means that laboratory workers don’t need to learn different techniques for different pipette sizes.
Ease of Use
Designed for efficient one-handed operation, modern pipette fillers allow laboratory workers to maintain better control over their experimental setup. This one-handed operation is particularly valuable when working with multiple containers or when precise positioning is required.
Maintenance and Care
Proper maintenance of rubber pipette fillers is essential for ensuring long-term reliability and accuracy. Pipette fillers are easy to clean when necessary by repeated flushing. Regular cleaning involves flushing the filler with distilled water or appropriate solvents to remove any residual chemicals or contaminants.
The rubber material should be inspected regularly for signs of degradation, such as cracks, hardening, or chemical damage. Colors are permanently molded into the rubber and will not fade or leach, ensuring that the integrity of the device remains intact over time.
Valve mechanisms should be checked periodically to ensure they open and close properly. Any valve that sticks or fails to seal completely should be addressed immediately, as this can affect the filler’s performance and potentially compromise experimental results.
Applications Across Different Fields
Rubber pipette fillers find applications across numerous scientific disciplines and industries. In analytical chemistry, they’re essential for preparing standard solutions and transferring precise volumes of reagents. Clinical laboratories rely on them for handling biological samples, while research institutions use them for everything from organic synthesis to environmental testing.
In educational settings, pipette fillers serve as an introduction to proper laboratory techniques, teaching students the importance of safety and precision in scientific work. Industrial laboratories use them for quality control testing, ensuring that products meet specified standards.
Choosing the Right Pipette Filler
When selecting a rubber pipette filler, several factors should be considered. The chemical compatibility of the rubber with the liquids being handled is paramount. While natural rubber works well with most aqueous solutions and common organic solvents, some aggressive chemicals may require specialized materials like silicone or other chemically resistant polymers.
The size and capacity of the filler should match the typical volumes being handled in the laboratory. Larger bulbs provide more suction power and can handle bigger pipettes, while smaller fillers offer better control for precision work with small volumes.
The quality of the valve system is another critical consideration. Well-designed valves should operate smoothly, provide reliable sealing, and resist chemical attack from laboratory solvents and cleaning agents.
Future Developments and Alternatives
While rubber pipette fillers remain a laboratory staple, the field of liquid handling continues to evolve. Electronic pipettes and automated liquid handling systems are becoming more common in high-throughput laboratories. However, the simplicity, reliability, and cost-effectiveness of rubber pipette fillers ensure they will remain relevant for many applications.
Recent innovations include improved valve designs, enhanced chemical resistance, and ergonomic improvements for extended use. Some manufacturers are experimenting with different rubber formulations and valve materials to expand the range of compatible chemicals and improve durability.
Conclusion
The rubber pipette filler represents a perfect example of how simple engineering solutions can have profound impacts on laboratory safety and efficiency. From its basic function of creating controlled suction to its role in preventing dangerous mouth pipetting practices, this humble device has earned its place as an indispensable tool in laboratories worldwide.
Understanding how to properly use and maintain pipette fillers is fundamental for anyone working with liquids in a laboratory setting. Whether you’re a student learning basic techniques or a professional researcher handling complex chemical analyses, mastering the use of pipette fillers is an essential skill that contributes to both personal safety and experimental success.
As laboratories continue to evolve and adopt new technologies, the rubber pipette filler’s combination of simplicity, reliability, and effectiveness ensures its continued relevance in the scientific community. Its contribution to laboratory safety alone makes it one of the most important innovations in laboratory equipment history.
